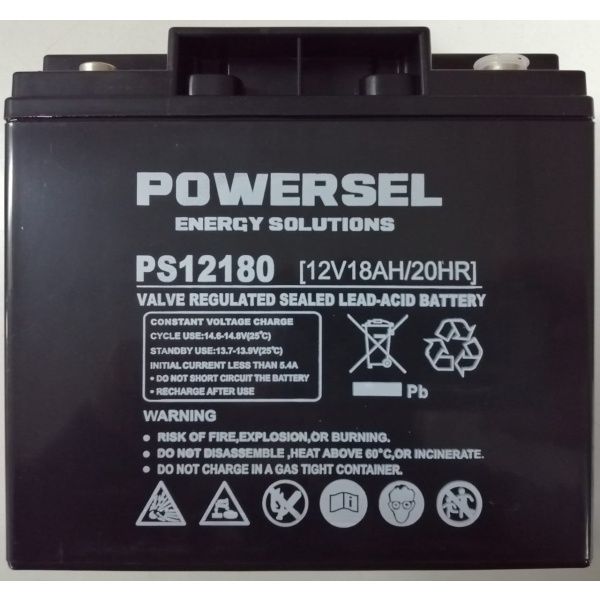

Batería AGM 12V 18AH ciclo profundo. Perno embutido.Recargable.Powersel
$44.580 Neto
Batería de ciclo profundo recargable para uso en UPS, Sistemas solares, alarmas y respaldo
BATERIA MARCA POWERSEL 12v x18ah, AGM, SELLADA, LIBRE DE MANTENCION, EXPECTATIVA
DE VIDA 6 A 8 AÑOS,

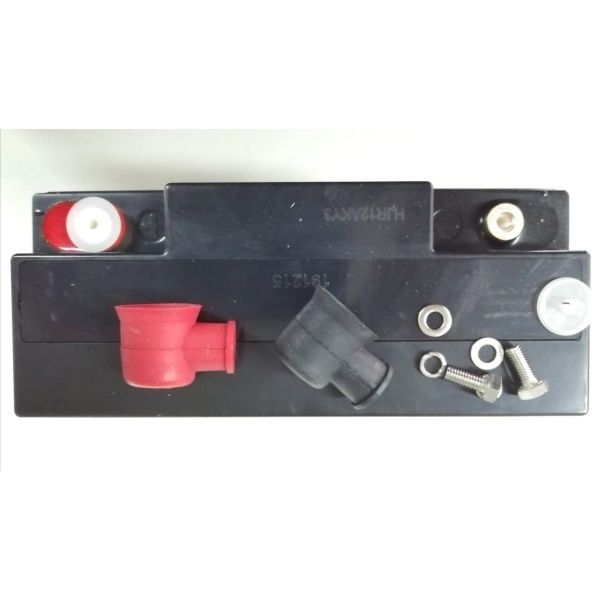

Terminal: FASTON 13 PERNO EMBUTIDO
Medidas: 181 X 77 X 167
BI1A123
Hay existencias
- Descripción
- Información adicional
- Ficha técnica / Descargas
Descripción
Cells Per Unit 6
Voltage Per Unit 12
Nominal Capacity 18Ah@20hour-rate to 1.75V per cell @25°C
Weight Approx. 5.00 Kg (Tolerance±5.0%)
Max. Discharge Current 180A (5 sec)
Internal Resistance Approx. 16 mΩ
Terminal F3(M5)/F13(M5)
Max. Charging Current 5.4 A
Container Material A.B.S. UL94-HB, UL94-V0 Optional.
Operating Temperature Range
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
Normal Operating Temperature Range 25°C±5°C
Standby Use Voltage
Cycle Use Voltage
Self Discharge
Valve Regulated Lead Acid (VRLA) batteries can be
stored for up to 6 months at 25°C and then recharging is
recommended. Monthly Self-discharge ratio is less than
3% at 25°C. Please charge batteries before using.
Design Life 6~8 years (Float charging)
Reference Capacity
C3 13.9AH
C20 18.0AH
Short Circuit Current 750A
C5 15.7AH
C10 16.8AH
Dimensions
13.7 V~13.9 V @ 25°C
Temperature Compensation: -3mV/°C/Cell
14.6 V~14.8 V @ 25°C
Temperature Compensation: -4mV/°C/Cell
