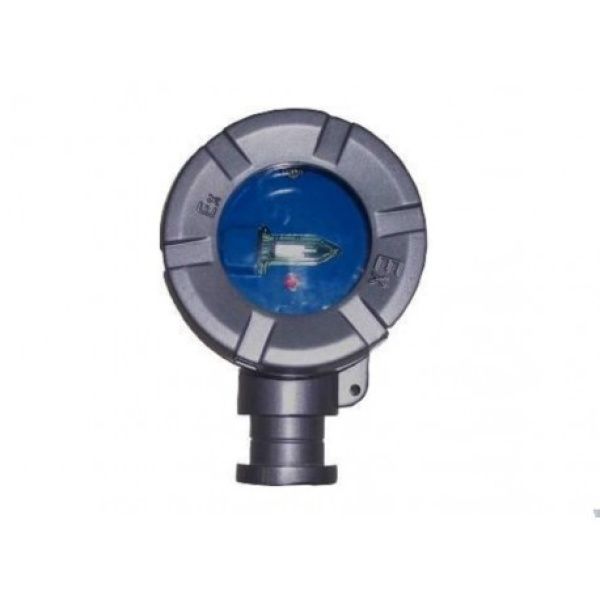

Detector de llamas UV Explosion-proof
$496.788 Neto
Caracteristicas:
Detection & Distance: 25m for Level I, 17m for Level II and 12m for Level III.
Ingress Protection: IP66
Ambient Temperature: －20℃～＋60℃
Relative Humidity: ≤95%RH, non-condensing
Dimensions: 147mm×106mm×92mm
Material and Color: ZL102 aluminum alloy,silvery grey.
Weight 1.5kg

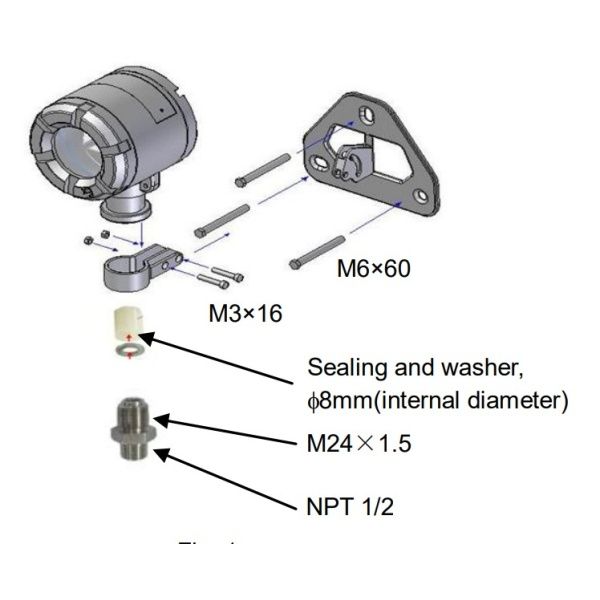

Installation Hole Spacing: 110mm×72mm
Explosion-proof Mark: Ex dⅡCT6
BI4A20
Sin existencias
- Descripción
- Información adicional
- Ficha técnica / Descargas
Descripción
Operating Voltage
Addressable Mode:
Loop voltage: 24V
Ranged: 16V~28V
Non-addressable Mode:
Voltage: 24VDC
Ranged: 20VDC~28VDC
Operating Current
Addressable Mode:
Standby current ≤ 2mA
Alarm current ≤ 3mA
Non-addressable Mode:
Standby current ≤ 13mA
Alarm current ≤ 23mA
Power-up Time ≤10s
Indicator Red. It flashes when polling, and illuminates steadily in alarm.
Programming Mode: Electronic programming. Occupying one loop address.
Address Range 1～242
Spectrum Response Range: 185nm～260nm
