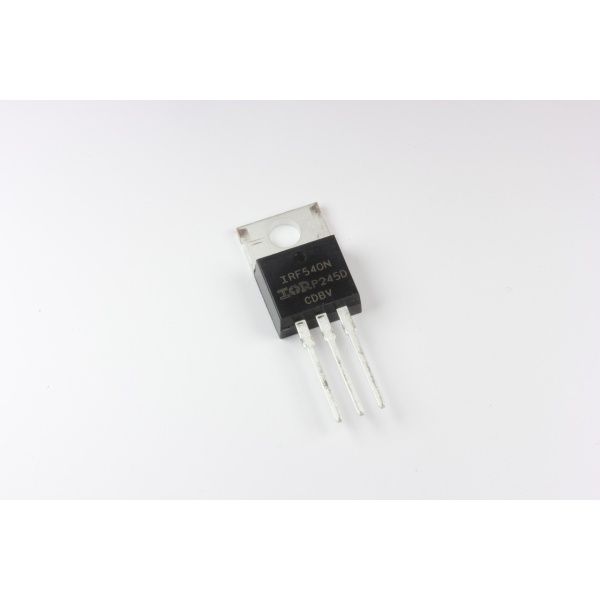

IRF540N MOSFET 100V, 20A a 100ºC, 33A a 25ºC. 3 UNIDADES

MOSFET, N, 100V, 33A, TO-220

Polaridad del transistor: Canal N

Continuous Drain Current Id: 33A

Drain Source Voltage Vds: 100V

On Resistance Rds(on): 44mohm

Rds(on) Test Voltage Vgs: 10V

Threshold Voltage Vgs Typ: 4V

Transistor Case Style: TO-220AB

N.º of Pins: 3

Corriente, ID máx.: 33A

Current Temperature: 25°C

Marcador: IRF540N

Full Power Rating Temperature: 25°C

Junction to Case Thermal Resistance A: 1.1°C/W

Lead Spacing: 2.54mm

N.º of Transistors: 1

Power Dissipation Pd: 94W
