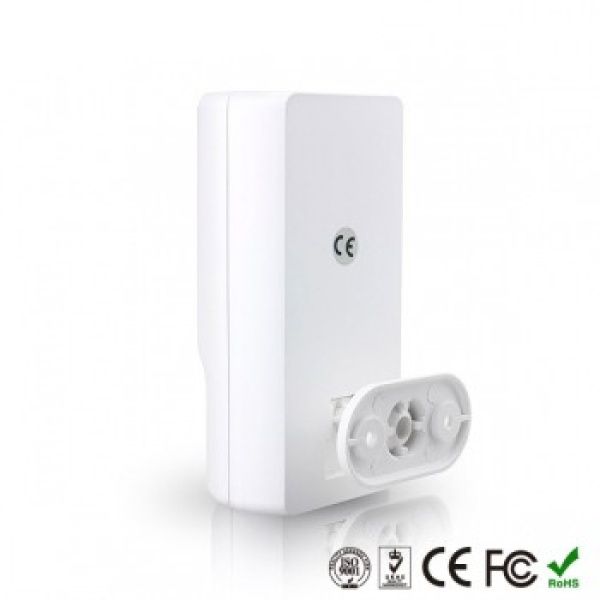

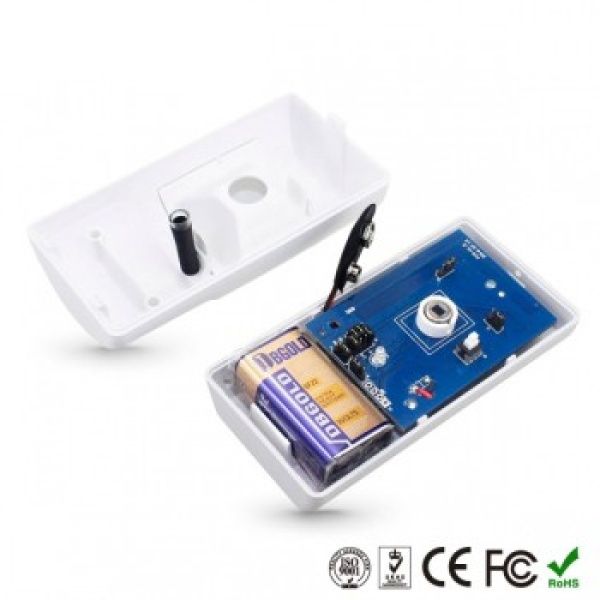

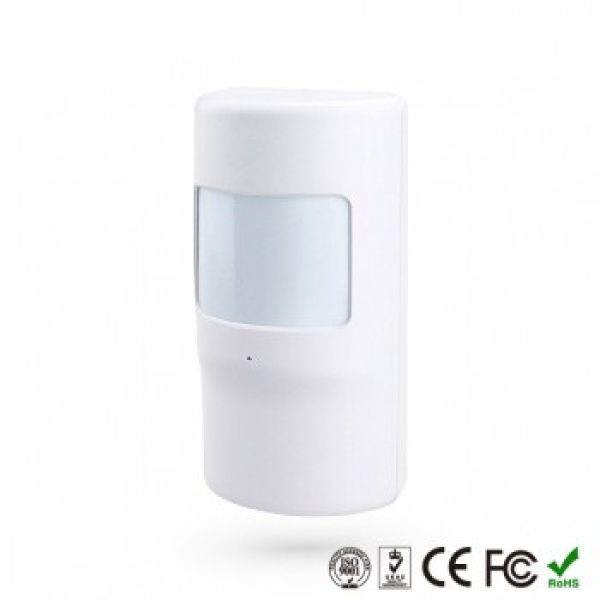

Sensor de detección de movimiento inalámbrico PIR
$9.645 Neto
Sensor de detección de movimiento inalámbrico PIR con notificación de batería baja a central inteligente TD-G90.
BI5*E30
Hay existencias
- Descripción
- Información adicional
- Ficha técnica / Descargas
Descripción
◆Installation: wall-mounted;
◆Power: 6F22 battery 9V;
◆Battery Life: Standby around 1 year;
◆Detecting distance:12m;
◆Detecting angle:110 degrees;
◆Open distance: 100-150M;
◆Chip IC: EV1527/330KΩ;
◆Wireless freq: 433Mhz;
◆Batería incluida
| TD-G90-PIR8 Specifications | |
| Name | Wireless PIR Motion Sensor |
| Model | TD-G90-PIR8 |
| Power Supply | Battery |
| Battery Type | 6F22 Battery DC9V |
| Wireless frequency | 433MHz |
| Wireless transmission range | 100-150 meters(Open area) |
| Coding chip and Resistance | EV1527/330KΩ |
| Detecting distence | 12m |
| Detecting angle | 110° |
| Alarm indicator | Red LED |
| Power switch | ON/OFF |
| Antenna type | Built in antenna |
| Static current | ≤25μA |
| Alarm current | ≤15mA |
| Low battery Alert Function | Support G90B |
| Operation Temp. | –10°C to +50°C |
| Humidity | 5%–95% non-condensing |
| Dimension | |
| Weight | |
| TD-G90-PIR8 Package List | |
| PIR Sensor | x1 |
| Bettery | x1 |
| Bracket | x1 |
| Screws | x2 |
| Plastic screw plug | x2 |
| User Manual | x1 |
