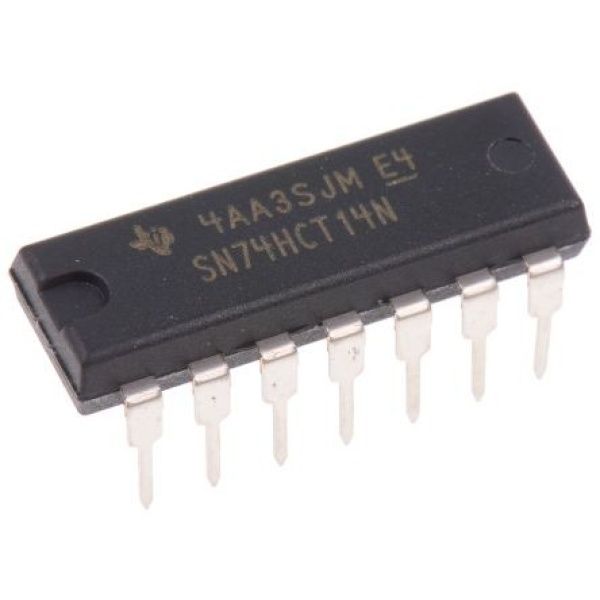

SN74HCT14N. Inversor, HCT, Hex 4mA PDIP 14 pines, alimentación 4,5 → 5,5 V. PACK 8 UNIDADES.

Descripción

Especificaciones:

Maximum High Level Output Current: -4mA
Maximum Operating Temperature +85 °C
Number of Elements per Chip  6
Length: 19.3mm
Schmitt Trigger Input: Yes
Maximum Propagation Delay Time @ Maximum CL: 30 ns @ 5.5 V, 32 ns @ 4.5 V
Minimum Operating Supply Voltage:  4.5 V

Brand: Texas Instruments
Propagation Delay Test Condition:  50pF
Package Type:  PDIP
Mounting Type:  Through Hole
Input Type: Schmitt Trigger
Minimum Operating Temperature: -40 °C
Width: 6.35mm
Logic Family: HCT
Height: 4.57mm
Logic Function: Inverter
Maximum Operating Supply Voltage: 5.5 V
Pin Count: 14
Dimensions: 19.3 x 6.35 x 4.57mm
Maximum Low Level Output Current: 4mA
